Features

• Max weight capacity: 125 kg
• Max working radius: 2800 mm
• Vertical lift: 2450 mm
• Working pressure: 0.7 ÷ 0.8 Mpa
• Control system: solely pneumatic
• Supply: filtrated compressed-air (40 µm), not lubricated
• Noise level: Max vertical lifting speed: 0,5 meters/second
• Working temperature: from +0° to +45° C
• Consumption: from 50 Nl ÷ 100 Nl per working cycle
• Rotations: – constant 360° on the column and tooling axis – 300° on the intermediate axis

Execution

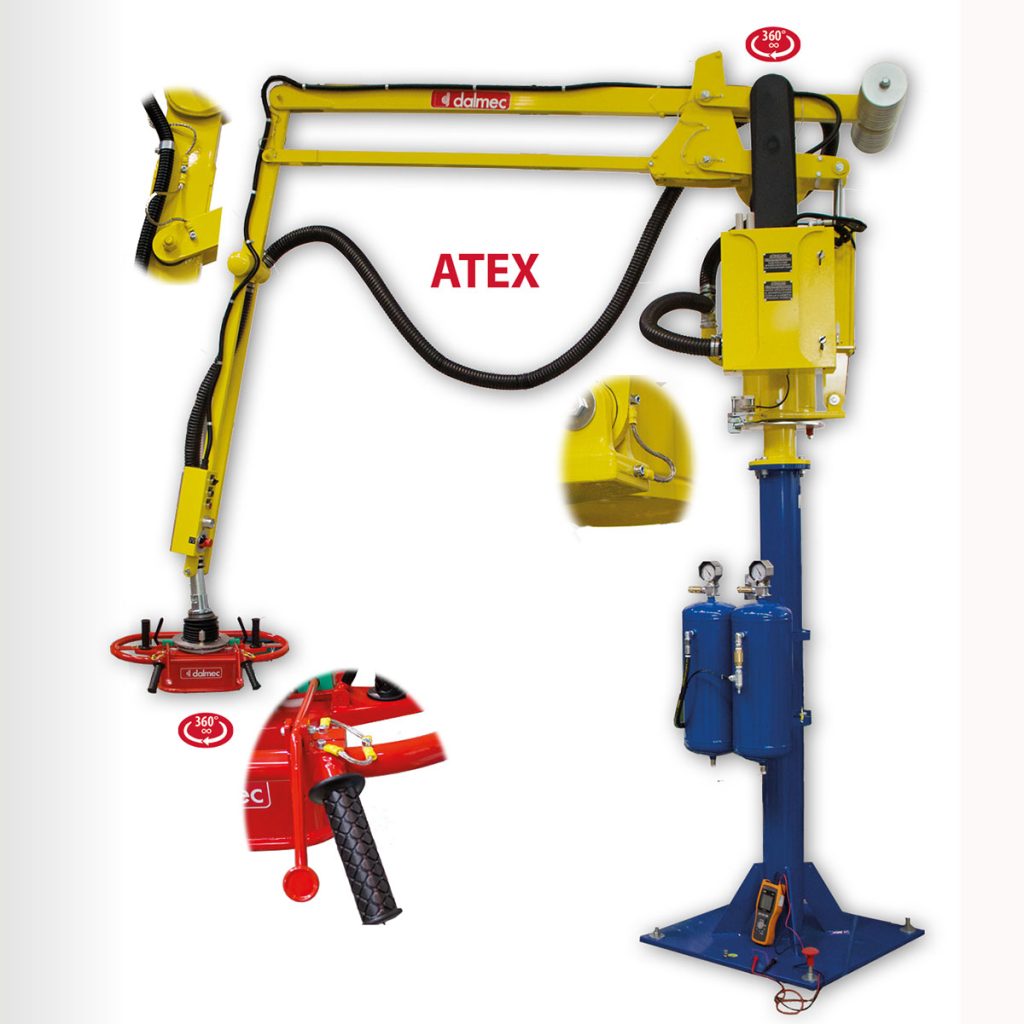

• Atex Column
• Atex Fixed Overhead
• Atex Overhead
• RunningColumn
• Fixed Overhead

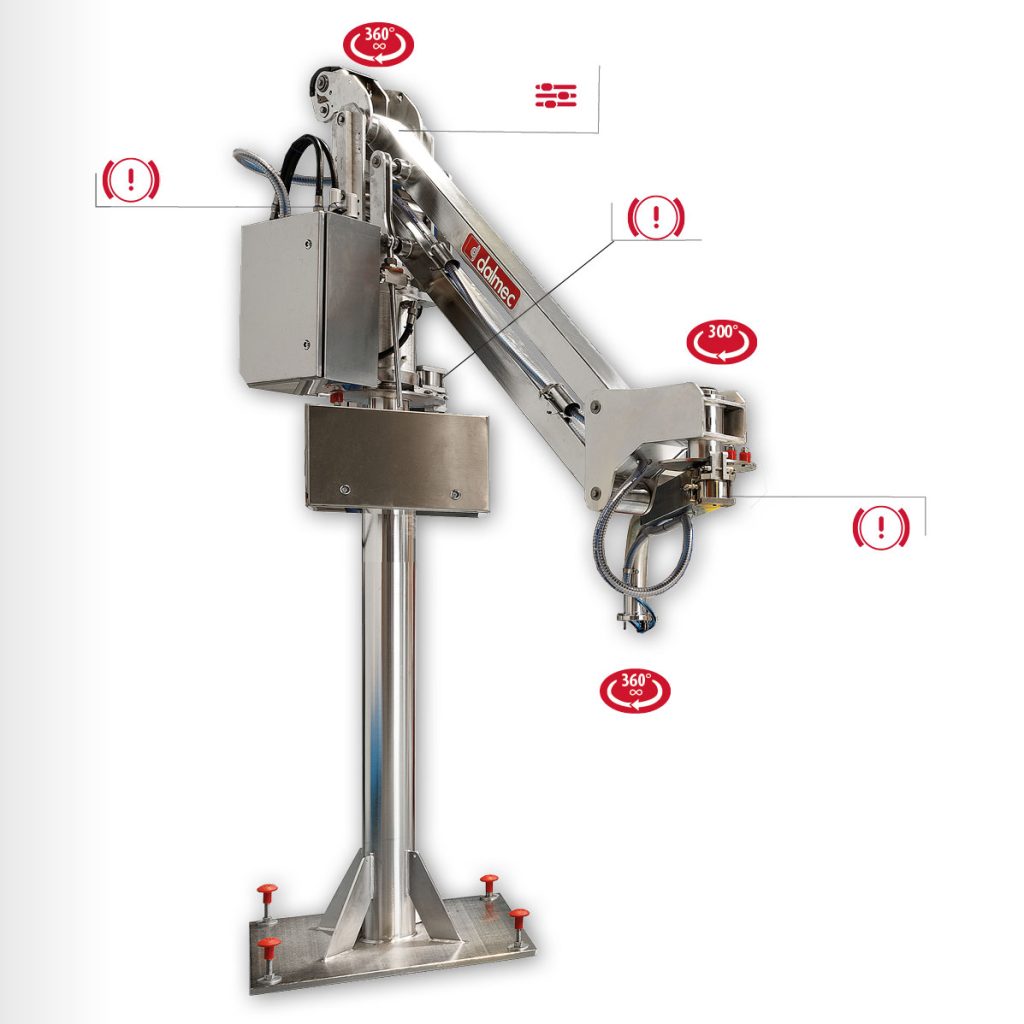

• Inox ColumnInox
• Fixed Overhead
• Inox Overhead Running
• Overhead Running

Features

• Max weight capacity: 1500 kg
• Max working radius: 5000 mm
• Vertical lift: 3050 mm
• Working pressure: 0.7 ÷ 0.8 Mpa
• Control system: solely pneumatic
• Supply: filtrated compressed-air (40 µm), not lubricated
• Max vertical lifting speed: 0,5 meters/second
• Working temperature: from +0° to +45° C
• Noise level:
• Consumption: from 100 Nl ÷ 600 Nl per working cycle
• Rotations: – constant 360° on the column and tooling axis – 300° on the intermediate axis

Features

• Max weight capacity: 900 kg
• Max working radius: 4500 mm
• Vertical lift: 2200 mm
• Working pressure: 0.7 ÷ 0.8 Mpa
• Control system: solely pneumatic
• Supply: filtrated compressed-air (40 µm), not lubricated
• Max vertical lifting speed: 0,5 meters/second
• Working temperature: from +0° to +45° C
• Noise level:
• Consumption: from 100 Nl ÷ 400 Nl per working cycle
• Rotations: – constant 360° on the column and tooling axis – 300° on the intermediate axis

Features

• Max weight capacity: 250 kg
• Max working radius: 2500 mm
• Max vertical lifting speed: 0,5 meters/second
• Vertical lift: 1900 mm
• Control system: solely pneumatic
• Supply: filtrated compressed-air (40 µm), not lubricated
• Working pressure: 0.7 ÷ 0.8 Mpa
• Working temperature: from +0° to +45° C
• Noise level:
• Consumption: from 30 Nl ÷ 150 Nl per working cycle
• Rotations: – constant 360° on the column and tooling axis – 300° on the intermediate axis

Features

• Max weight capacity: 550 kg
• Max working radius: 4000 mm
• Vertical lift: 2450 mm
• Working pressure: 0.7 ÷ 0.8 Mpa
• Control system: solely pneumatic
• Supply: filtrated compressed-air (40 µm), not lubricated
• Noise level:
• Max vertical lifting speed: 0,5 meters/second
• Working temperature: from +0° to +45° C
• Consumption: from 50 Nl ÷ 200 Nl per working cycle
• Rotations: – constant 360° on the column and tooling axis – 300° on the intermediate axis
