Liftronic® series electronic manipulators

Pneumatic manipulators PN series

Liftronic® Pro

Liftronic® Pro

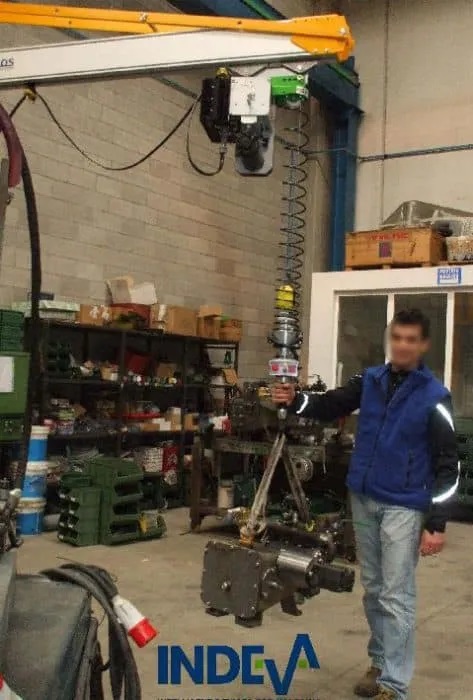

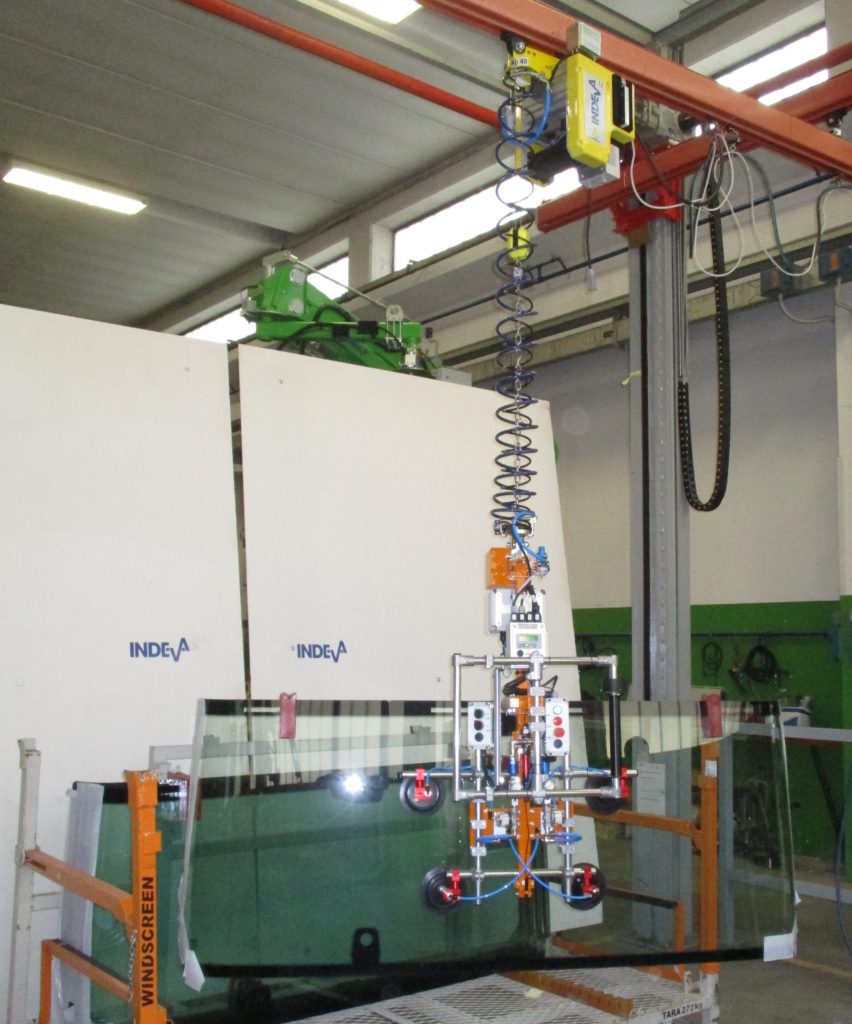

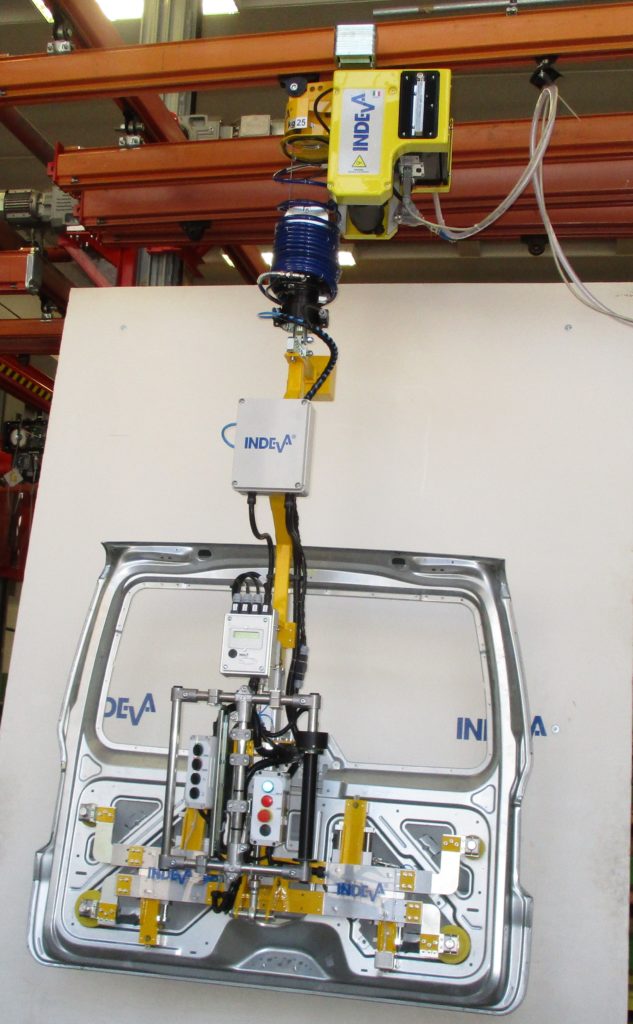

Suitable for customized load handling solutions, including load rotation or vacuum gripping and/or specialized controls.

Models are available with load capacities from 80 to 320 kg, including end effectors. Suitable for various supports, such as a column with an orbital handle, ceiling, overhead rail, and overhead crane systems, including Liftruck.
The Liftronic® Pro series manipulators are advanced industrial manipulators that belong to the INDEVA® (Intelligent Assistance Devices) class. INDEVA® (or IAD – Intelligent Assistance Devices) are zero-gravity electronic balancers that represent a new ergonomic solution in material handling, addressing today's pressing need for increased productivity and safety.

ORBITAL TOOLING HEAD AND GRIPPERS:

Thanks to our modular "MODULO" end effector concept and microprocessor-based logic, we can design and manufacture tooling heads and grippers that meet the precise requirements of our customers across all industries. The intelligent and consistent industrialization process of our end effectors ensures proven reliability and efficiency for both custom and standard end effectors.

more collapse

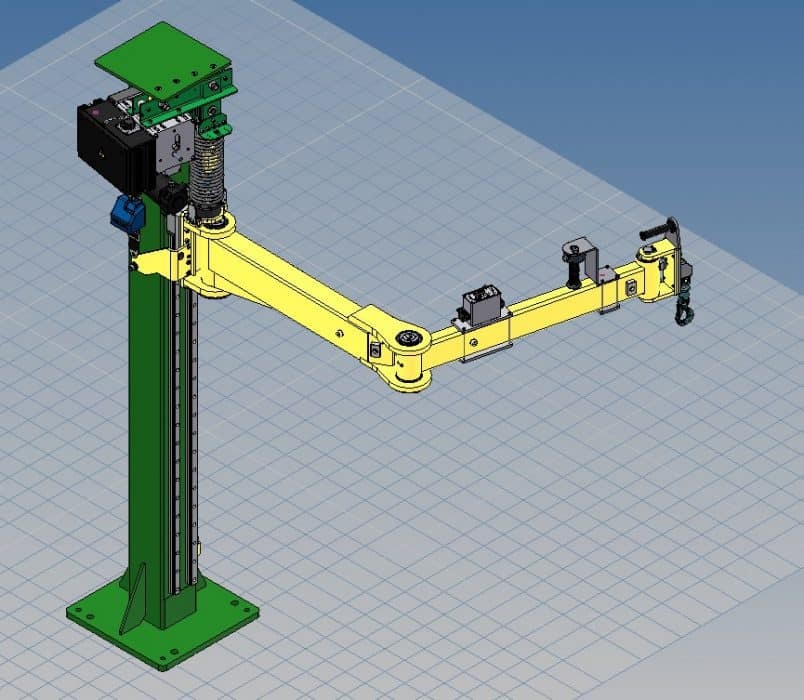

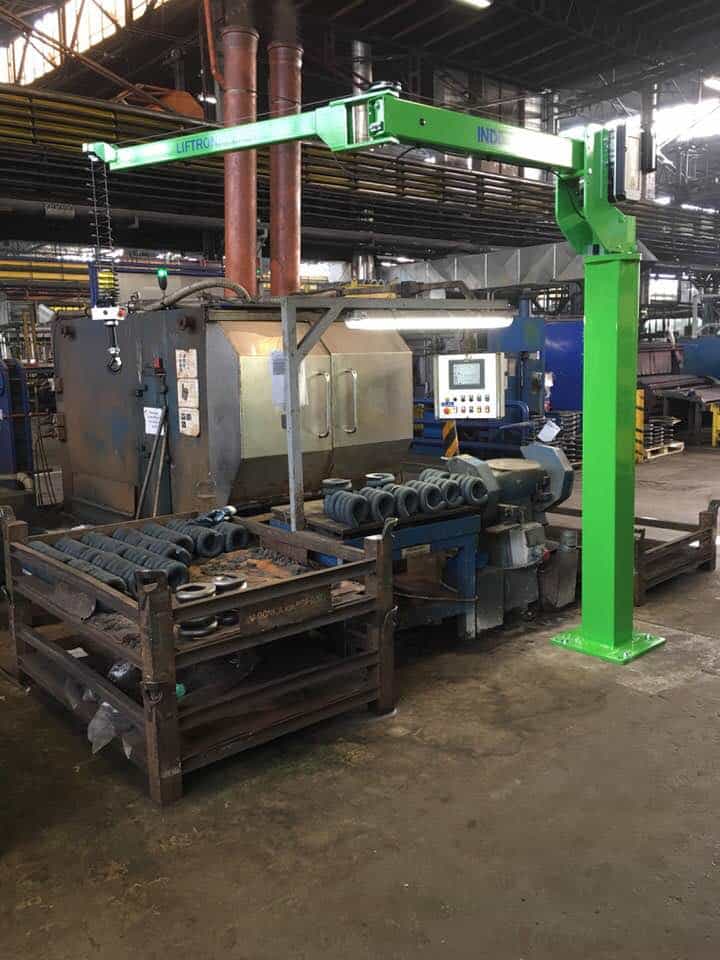

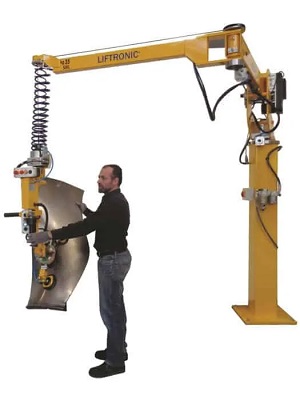

Liftronic® Proolumn mounted with articulated arm

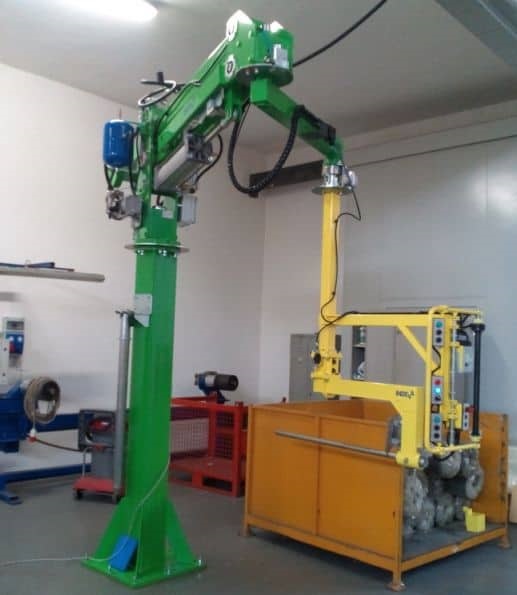

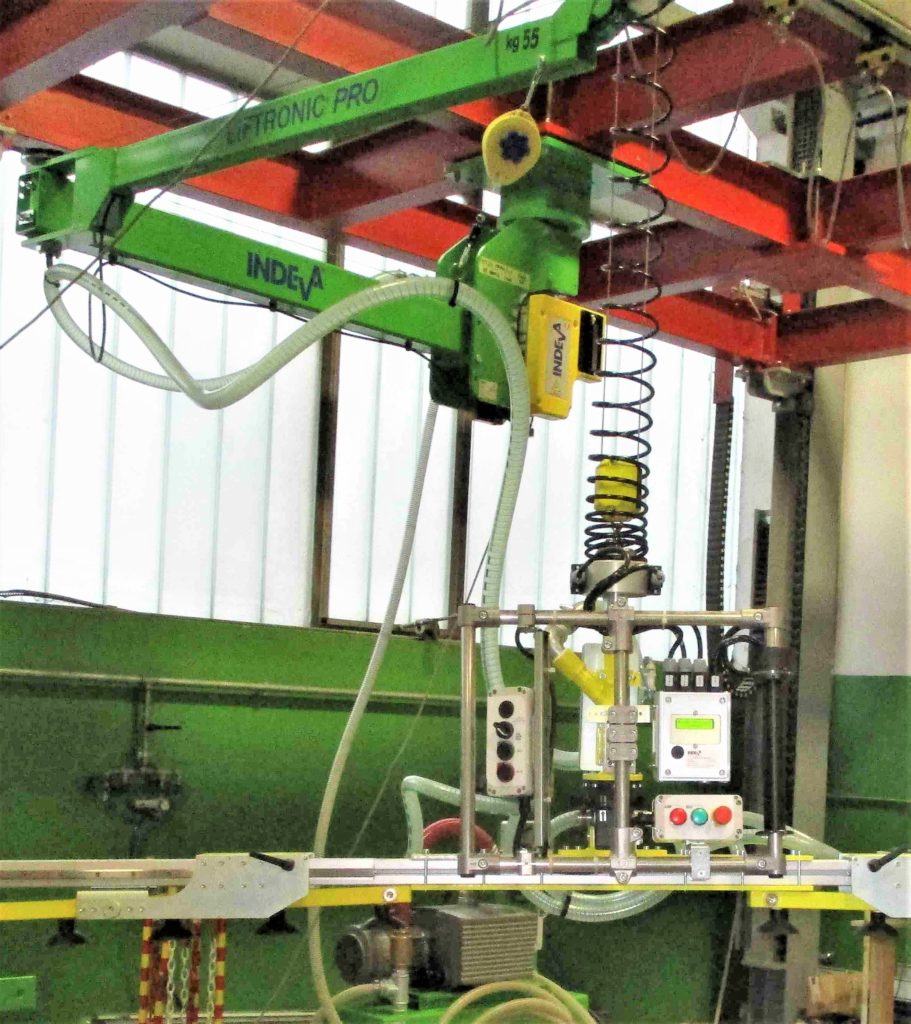

Manipulator INDEVA® Liftronic® Pro column mounted with articulated arm

MAIN FEATURES

• Auto-weight sense and auto-balancing
• Can be integrated with App-Indeva and INDEVA® Gateway
• Unparalleled safety
• Ergonomic design
• Bespoke gripping devices
• Compact and light
• Fast, responsive and precise
• Low carbon footprint

TECHNICAL DATA
Max. gross capacity: from 80 to 320kg (weight of lifting tool included)
Power supply: 110/230 V-AC – 50/60 Hz
Power consumption: max 700 VA
Vertical stroke: up to 2.80m

JOINTED ARM SPECIFICATIONS

TECHNICAL DATA SHEET

more collapse

Liftronic® Pro – Overhead rail – ceiling mounted manipulator with jointed arm

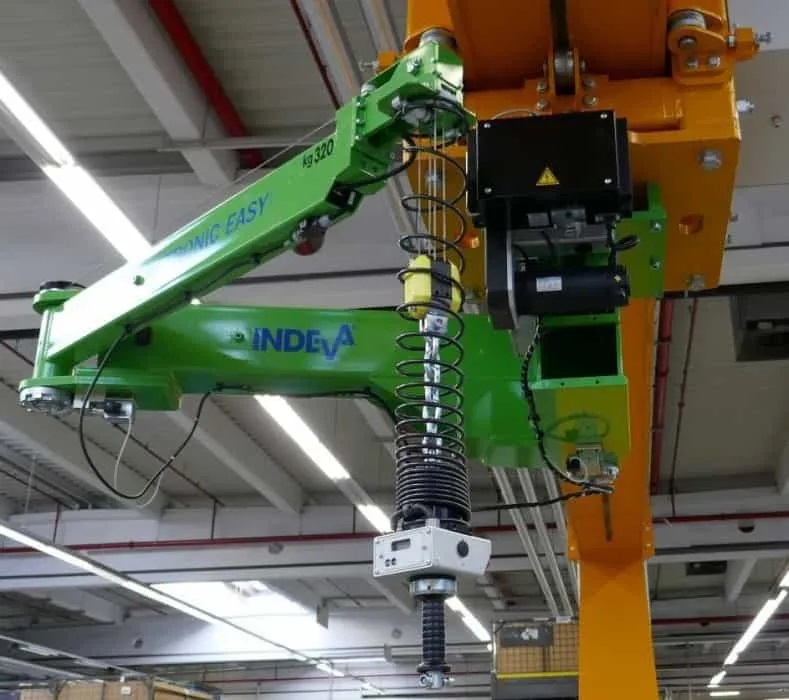

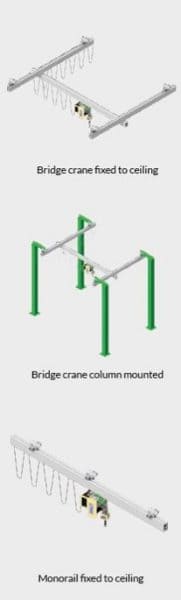

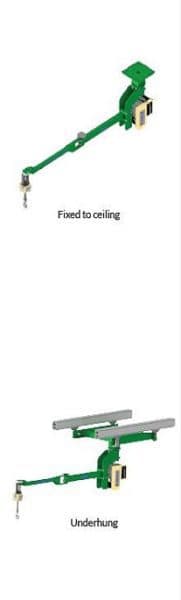

Liftronic® Pro can be supplied with an articulated arm fixed to the ceiling or to overhead rails.
Overhead rail or ceiling mounted INDEVA® Liftronic® Pro with articulated arm. This solution is suitable when you can’t use any space on the floor for a column mounted solution or you need to cover a large area.

MAIN FEATURES
• Auto-weight sense and auto-balancing
• Can be integrated with App-Indeva and INDEVA® Gateway
• Unparalleled safety
• Ergonomic design
• Bespoke gripping devices
• Compact and light
• Fast, responsive and precise
• Low carbon footprint

TECHNICAL DATA
Max. gross capacity: from 80 to 320kg (weight of lifting tool included)
Power supply: 110/230 V-AC – 50/60 Hz
Power consumption: max 700 VA
Vertical stroke: up to 2.80m



more collapse

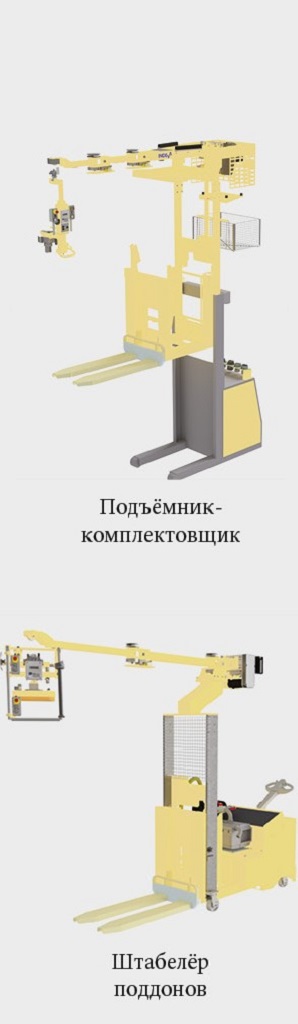

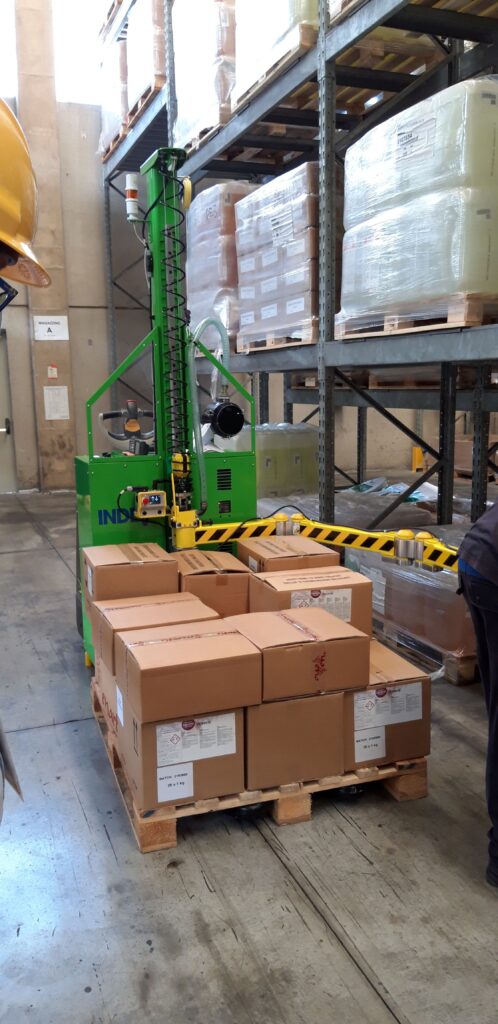

Liftruck Transpallet or lifting truck or order picker with an electronic manipulator mounted on it.

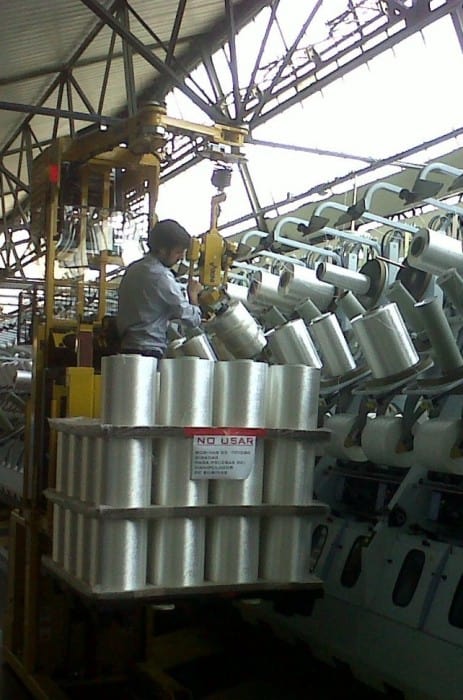

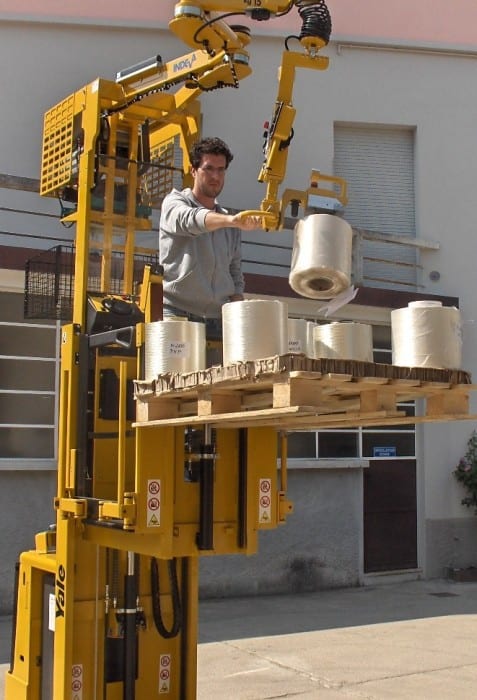

INDEVA® Liftruck is an industrial manipulator that includes an order picker to carry the pallet with reels, an INDEVA® Liftronic® with articulated arm and an orbital tool head for handling reels. Necessary within the textile industry in the texturizing, spinning and weaving areas to load creels up to 5 m high with reels of max 40 kg . A single man can carry out the whole work cycle: collect pallets in the stock room and carry them up to the creel, place the spools on the creel prior 90° rotation, collect and carry all the tubes and partition carton blanks. The operator can quickly and precisely pick and release the reels, by means of the orbital tool head with expanding chuck . The release is allowed only when the reel is safely placed on the pin. The electronic balancer INDEVA® grants a smooth, quick and precise reel handling.An INDEVA® Liftruck can be used also for handling cardboard cases by means of a vacuum gripper.


Main features

Max capacity: 50 kg
Max vertical stroke: max 3000 mm
Max lifting speed: 0,6 m/sec
Control: electronic – 24 Volt D.C.
Power consumption: 700 VA
Jointed Arm : Orbit-Arm®- possibility of custom arm lengths.
Gripping tool with orbital tool head and expanding chuck: equipped with reel barycentre adjust device and quick coupling device for quick chuck replacement allowing to handle reels with diameters ranging from 70 to 150 mm .
It is possible to use a vacuum gripper as end effector for handling cardboard cases.
Control panel: it comprises a direction indicator, a battery charge indicator, a steering wheel, control handle for back/forward moves, emergency stop.
Safety devices: a failsafe mechanic lock is triggered in the case of a power shortage and a brake limits the lowering speed of the motor.

more collapse

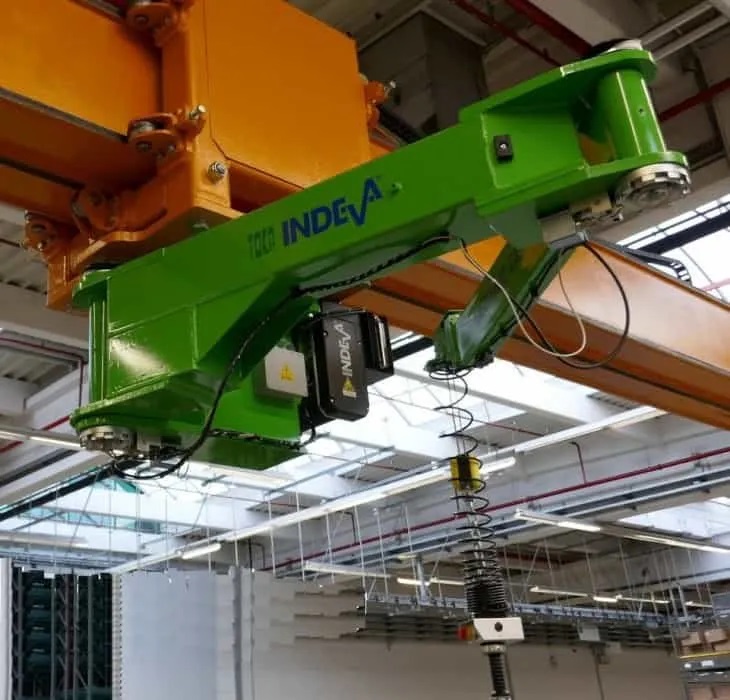

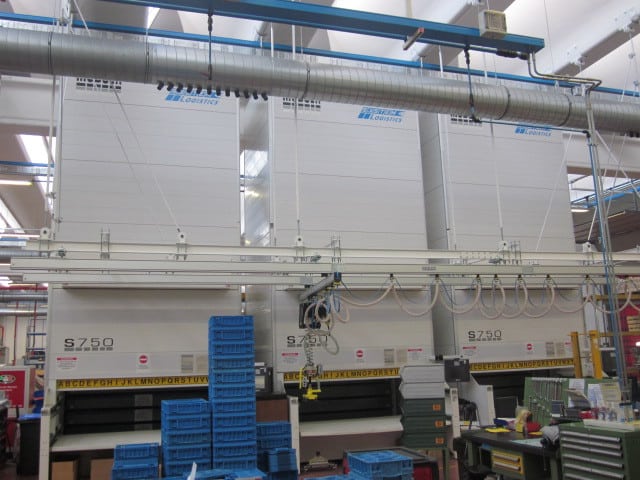

Liftronic® Pro rail mounted model slides along overhead mounted rails.

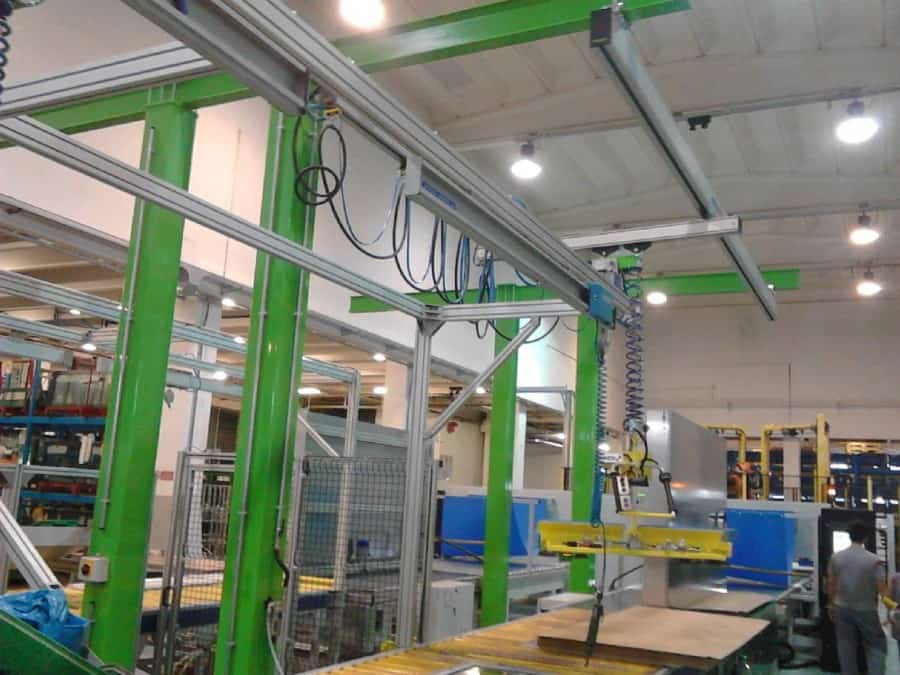

A rail mounted model Liftronic® slides along overhead bridge mounted rails. It is suitable for covering a large work area.

Main features

• Auto-weight sense and auto-balancing
• Can be integrated with App-Indeva and INDEVA® Gateway
• Unparalleled safety
• Ergonomic design
• Bespoke gripping devices
• Compact and light
• Fast, responsive and precise
• Low carbon footprint

TECHNICAL DATA
Max. gross capacity: from 80 to 320kg (weight of lifting tool included)
Power supply: 110/230 V-AC – 50/60 Hz
Power consumption: max 700 VA
Vertical stroke: up to 2.80m

TECHNICAL DATA SHEET

more collapse

Liftronic ® telescopic manipulator

The Liftronic ® intelligent manipulator, mounted on a telescopic column, is robust, smooth, backlash-free and easy to maintain, even when working with off-centered loads.

Key features

• Automatic weight detection and automatic balancing
• Wide view and maneuverability
• Unsurpassed safety
• Ergonomic design
• Special gripping devices
• Compact and lightweight
• Fast, responsive and precise
• Low carbon footprint

TECHNICAL DATA

Max. total load capacity: 120 kg
Max. lifting speed: 18 m/min
Vertical telescopic travel: up to 1.30 m

more collapse

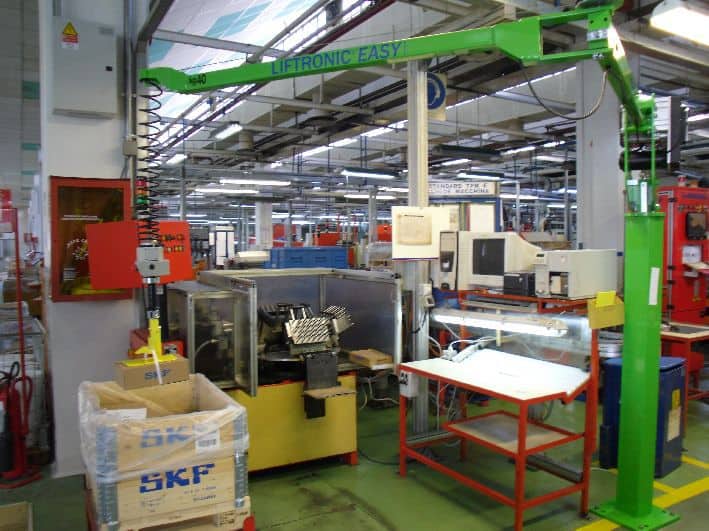

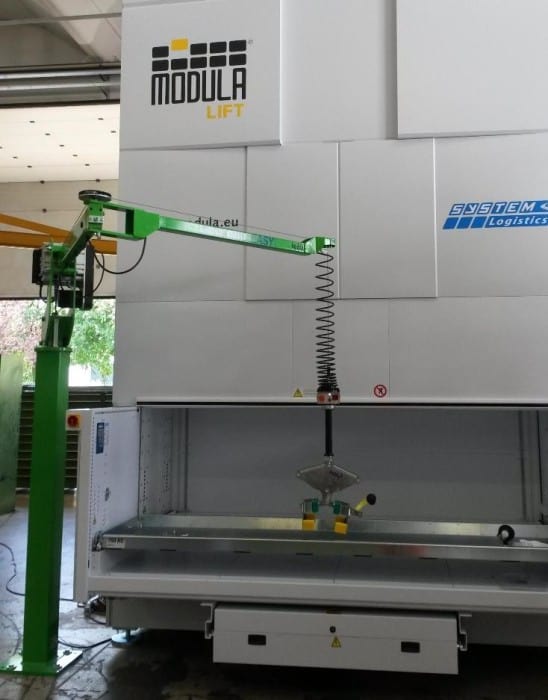

Liftronic® Easy​

Liftronic® Easy – монтований на колоні

Інтелектуальний допоміжний пристрій підйому Liftronic® Easy – колона + важіль
Liftronic® Easy, монтований на колону з шарнірним важелем

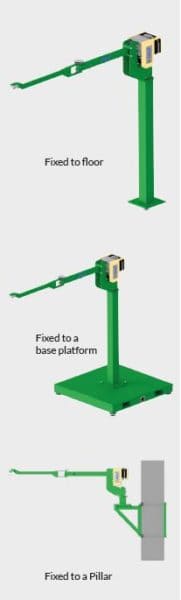

Версія Liftronic® Easy з колоною та важелем доступна в різних конфігураціях залежно від максимальної вантажопідйомності, довжини важеля та висоти колони, необхідної для кожного застосування .

Його можна закріпити на підлозі або на рухомій опорній платформі.

more collapse

Liftronic® Easy – підвісна рейка – монтаж на стелы із шарнірним важелем

more collapse

Liftronic ® Easy – Підвісний маніпулятор, встановлений на рейці

more collapse

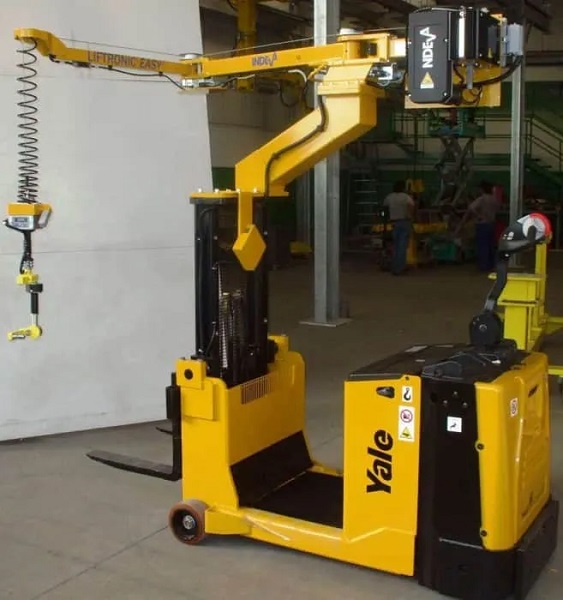

Liftronic® Easy – версія автонавантажувач Lifttruck

Liftronic® Easy можна закріпити на базовій платформі, а вона — на вилах навантажувача Lifttruck.

Основні характеристики

  • Максимальна вантажопідйомність: 50 кг
  • Максимальний вертикальний хід: макс. 2800 мм
  • Максимальна швидкість підйому: 0,6 м/с
  • Керування: електронне – 24 вольта постійного струму
  • Споживана потужність: 700 ВА
  • Шарнірний кронштейн: Orbit-Arm ® – можливість виготовлення кронштейнів нестандартної довжини.
  • Панель керування: містить покажчик повороту, індикатор заряду акумулятора, кермо, ручку керування для руху назад/вперед, аварійну зупинку.

Запобіжні пристрої: у разі відсутності живлення спрацьовує аварійне механічне блокування, а гальмо обмежує швидкість опускання двигуна.

more collapse

Liftronic ® Easy – версія з лінійним маніпулятором

Версія з лінійним маніпулятором – найкраще рішення для досягнення зміщених навантажень у робочій зоні з низькою стелею.

Основні характеристики

  • Автоматичне визначення ваги та автоматичне балансування ваги навантаження
  • Висока точність розміщення навантаження
  • Вантаж не зазнає жодного удару під час розташування
  • Сенсорна ручка забезпечує контрольований рух кінчиками пальців: ви можете переміщувати вантаж із потрібною вам швидкістю, дуже швидко або дуже повільно
  • Повна безпека у разі раптової втрати навантаження: елементи керування миттєво балансують систему, тим самим усуваючи ризик раптового руху інструментів вгору.
  • Зручний для користувача
  • Легко обслуговувати
  • Доступне дистанційне обслуговування
more collapse

Liftronic ® Easy – версія з підвісною рейкою

Модель Liftronic® Easy, що встановлюється на рейці, ковзає по рейках, встановлених на підвісному мосту. Вона підходить для покриття великої робочої зони.

Основні характеристики

• Автоматичне визначення ваги та автоматичне балансування
• Можливість інтеграції з App-Indeva та INDEVA ® Gateway
• Неперевершена безпека
• Ергономічний дизайн
• Прості захоплювальні пристрої
• Компактний та легкий
• Швидкий, чуйний та точний
• Низький вуглецевий слід

ТЕХНІЧНІ ДАНІ

  • Макс. вантажопідйомність: від 80 до 320 кг (вага підйомного інструменту включно)
  • Живлення: 110/230 В змінного струму – 50/60 Гц
  • Споживана потужність: макс. 700 ВА
  • Вертикальний хід: до 2,80 м
more collapse

Liftronic® Air

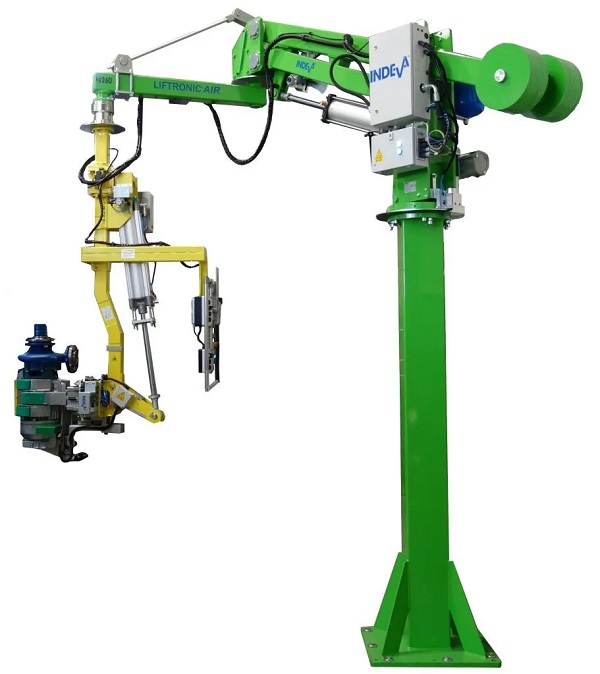

Liftronic® Air – Column mounted manipulator + Arm

Column mounted INDEVA® Liftronic® Air: pneumatic drive, electronic control

Main features

• Air pressure 0,65 MPa (6,5 bar)
• Power supply 115/230V A/C 50/60Hz
• Power consumption 100VA
• Enclosure protection IP54
• Noise level < 70 dB(A)
• Lifting capacity limiter
• Lift speed from 15 to 30 m/min
• Main column axis brake
• Intermediate joint axis brake
• Column rotation 360°
• Tool axis rotation 550°
• Slow descent in case of pressure failure
• Balancing type: load preset or self balancing (it depends from the tooling)

Technical data:

TECHNICAL DATA SHEET LIFTRONIC AIR 80 – COLUMN MOUNTED
TECHNICAL DATA SHEET LIFTRONIC AIR 160 – COLUMN MOUNTED
TECHNICAL DATA SHEET LIFTRONIC AIR 250 – COLUMN MOUNTED
TECHNICAL DATA SHEET LIFTRONIC AIR 400 – COLUMN MOUNTED

more collapse

Liftronic ® Air

more collapse

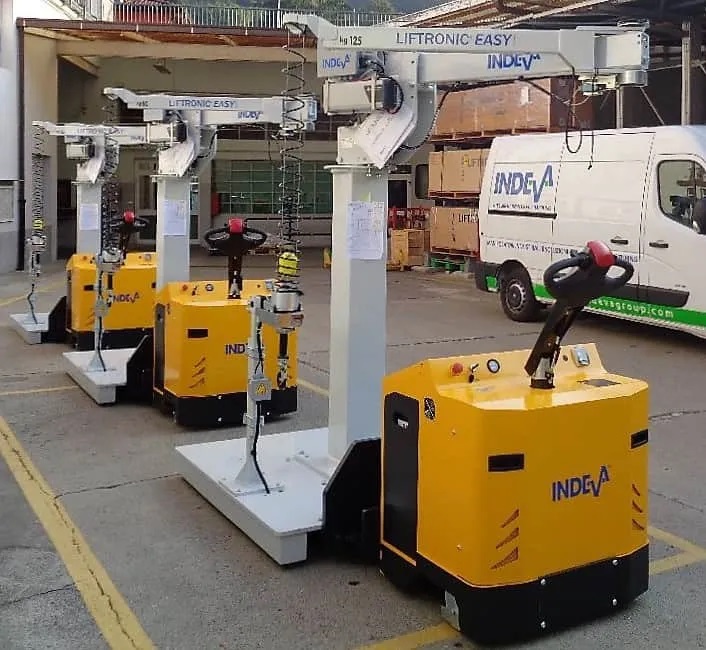

Liftronic® Mobile

Technical sheet

Liftronic® Mobile

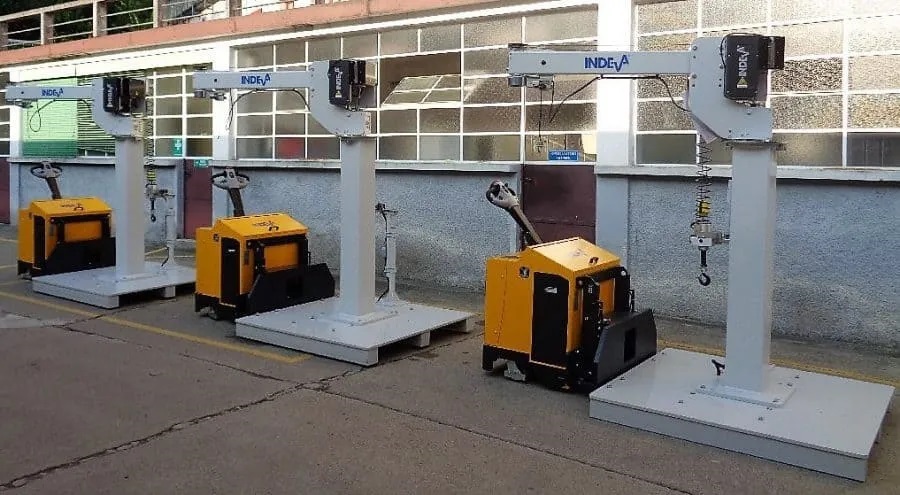

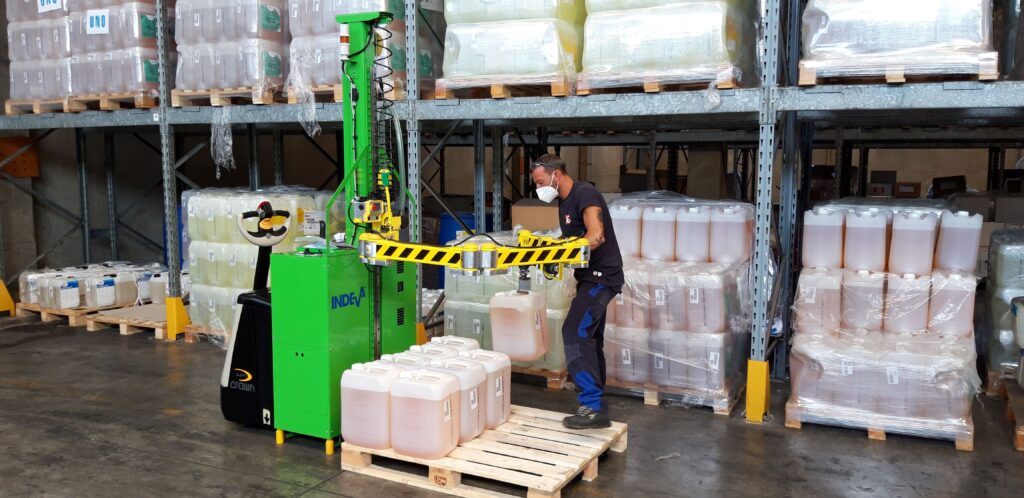

A Lift Assist Device INDEVA with a base suitable for being fitted on a pallet truck

Liftronic Mobile is an INDEVA Lift Assist Device designed to be installed on a pallet truck so that it can be moved and used wherever it is needed.

Main features and Advantages of Liftronic Mobile

  • Easy to fix onto a pallet truck
  • One lift assist device available for different work stations
  • Allows for very smooth handling operations thanks to its 4 jointed arm
  • Auto-weight sense and auto-balancing
  • Safe and easy to move around
  • Fast, responsive and precise
  • Low carbon footprint
  • Easy interchange of grippers for different applications
  • Easy maintenance, having all components easily accessible behind a removable carter



more collapse
