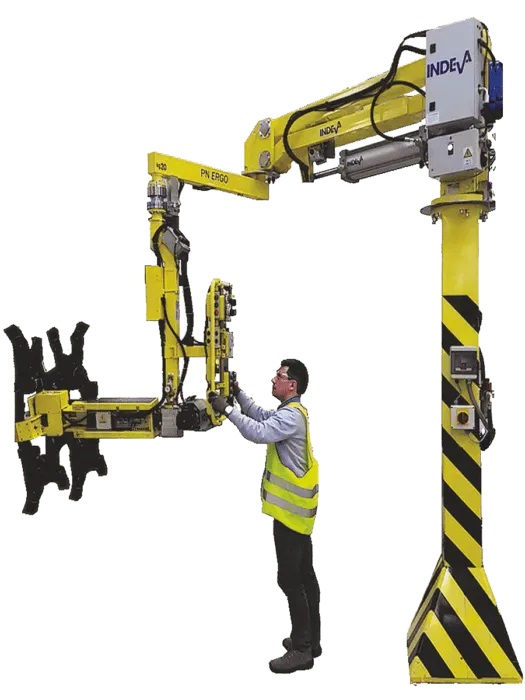

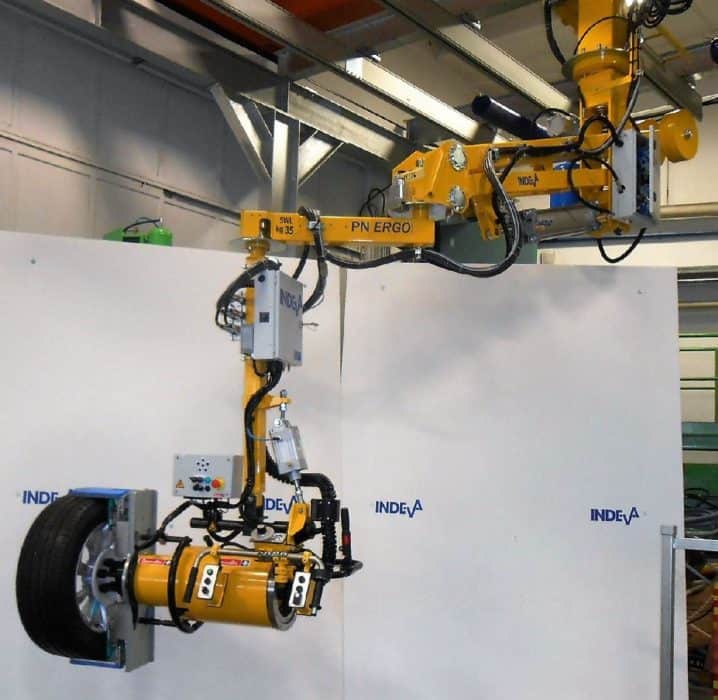

PN ERGO Pneumatic Manipulators, Column Mounted, with Rigid Arm
Pneumatic Manipulators, Column Mounted, with Rigid Arm, manufactured by Scaglia INDEVA, a worldwide known brand for industrial manipulators.
MAIN FEATURES
• Air pressure 0,65 MPa (6,5 bar)
• Noise level< 70 dB (A)
• Lift speed from 15 to 30 m/min
• Main column axis brake
• Intermediate joint axis brake
• Continuous column rotation
• Slow descent in case of pressure failure
• Load balancing: standard, 1 load preset
Technical data:
TECHNICAL DATA SHEET PN 80 – COLUMN MOUNTED
TECHNICAL DATA SHEET PN 160 – COLUMN MOUNTED
TECHNICAL DATA SHEET PN 250 – COLUMN MOUNTED
TECHNICAL DATA SHEET PN 400 – COLUMN MOUNTED
PN ERGO Pneumatic Manipulators, overhead rail and ceiling mounted, with Rigid Arm
Pneumatic Manipulators, overhead rail and ceiling mounted, with Rigid Arm
MAIN FEATURES
• Air pressure 0,65 MPa (6,5 bar)
• Noise level< 70 dB (A)
• Lift speed from 15 to 30 m/min
• Main column axis brake
• Intermediate joint axis brake
• Continuous column rotation (not available with motorized sliding trolley)
• Slow descent in case of pressure failure
• Load balancing: standard, 1 load preset
Technical data:
TECHNICAL DATA SHEET PN 80 – CEILING/RAIL MOUNTED
TECHNICAL DATA SHEET PN 160 – CEILING/RAIL MOUNTED
TECHNICAL DATA SHEET PN 250 – CEILING/RAIL MOUNTED
TECHNICAL DATA SHEET PN 400 – CEILING MOUNTED
TECHNICAL DATA SHEET PN 400 – RAIL MOUNTED
PN Compatto

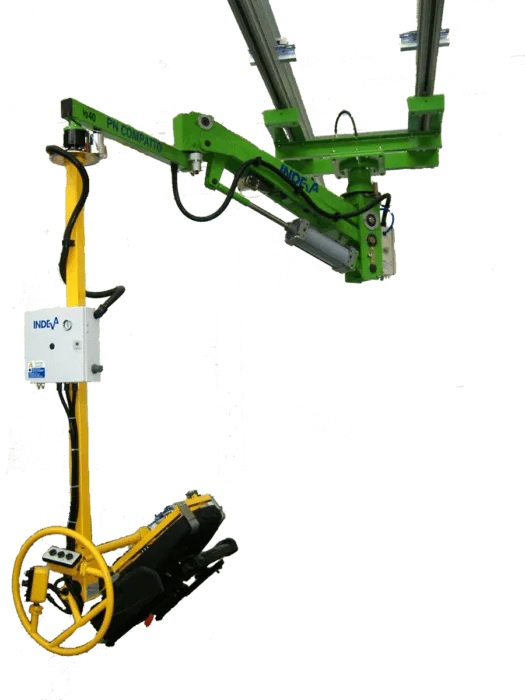

PN COMPATTO are pneumatic industrial manipulators with rigid vertical arm,
PN COMPATTO are pneumatic industrial manipulators with rigid vertical arm, suitable for applications in small size, low ceiling work areas.
Main features:
- Lift speed from 15 to 30 m/min
- Control: pneumatic
- Air pressure: min 6 bars
- Work Temperatures: from +5° to +50° C
- Noise level:
- Main column axis brake
- Intermediate joint axis brake
- Continuous column rotation
- Safety devices: in case of pressure failure a safety devices retains the grip on the load, and the tooling descends slowly till the floor. Special brakes keep the arm and gripping tool still when not used
Available options
- Rotating joint on the articulate axis
- System lock for the lift capacity
- Brake for up/down movement
- Double braking force on the main and intermediate axis
- Special painting
- Sliding trolley
- Pneumatic industrial manipulators PN Compatto with jointed arm fixed to an overhead rail Ceiling mounted model is also available.

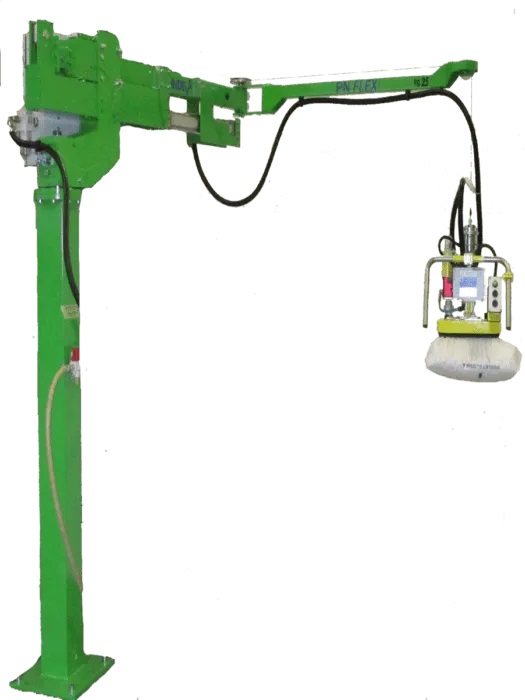

PN Flex
Пневматичний маніпулятор PN Flex
Пневматичний маніпулятор з тросовим вертикальним маніпулятором. Пневматичні маніпулятори PN Flex підходять для обробки вантажів, центр ваги яких знаходиться на осі Z вертикального маніпулятора. Вони дозволяють гнучкі рухи забирання/розвантаження вантажів.
– Канат на вертикальній осі;
– Підвісний або стовпний монтаж;
– Стандартні та нестандартні інструменти для захоплення.
Технічні характеристики
- Максимальне навантаження: 80 кг
- Максимальна швидкість підйому: 45 м/хв
- Управління: пневматичне
- Тиск повітря: 6,0
- Температура роботи в барі: від +5° до +50° C
- Рівень шуму: Тертя головної осі суглоба
- Тертя осі проміжного суглоба
- Запобіжні пристрої: у разі падіння тиску повільний спуск до підлоги
Доступні опції
- Відповідність вимогам ATEX для застосування в контрольованих середовищах з небезпекою вибуху: – Зона 1/2 (IIA-IIB) для газів – Зона 21/22 (IIIA-IIIB-IIIC) для пилу
- Спеціальне фарбування для сталевої платформи
- Версія з подвійним канатом
- Блоки обертання на основному суглобі
- Виконання з нержавіючої сталі
- Підсилювач тиску
- 3-суглобова рука
PN Zip
Pneumatic industrial manipulators PN ZIP
Pneumatic industrial manipulators, light and compact, suitable for applications with a short vertical excursion and quick work cycles.
Main features:
Max load capacity: kg 80
Control: pneumatic
Air pressure: 6,0 Bar
Work Temperatures: from +5° to +50° C
Noise level: Safety devices: in case of pressure failure slow descent till the floor
Available options
Conformity to the ATEX
Regulations for applications in controlled environment with danger of explosion,
Special painting
